Cardiovascular

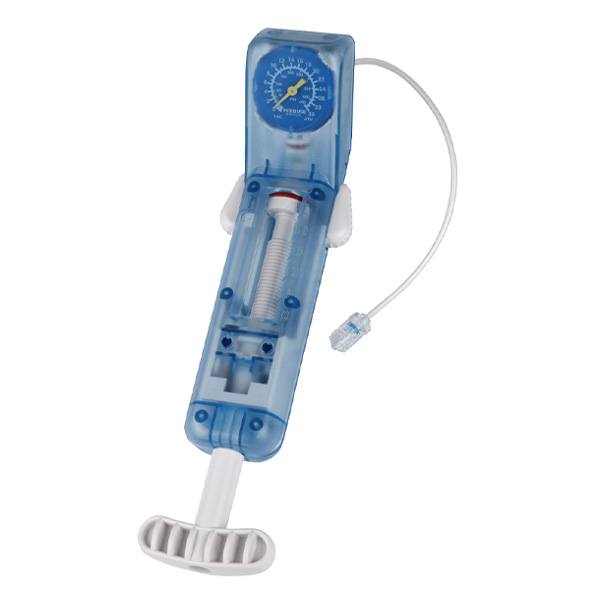

Dolphin
DOLPHIN THE INFLATION DEVICE MATCHING EVERY BALLOON CATHETER
- 30 atm pressure gauge
- 30 cc syringe
- Ergonomic handle
Features & benefits:
Pressure gauge
- 30 atm: reliable in any procedures
- Fluorescent indicator: good pressure reading

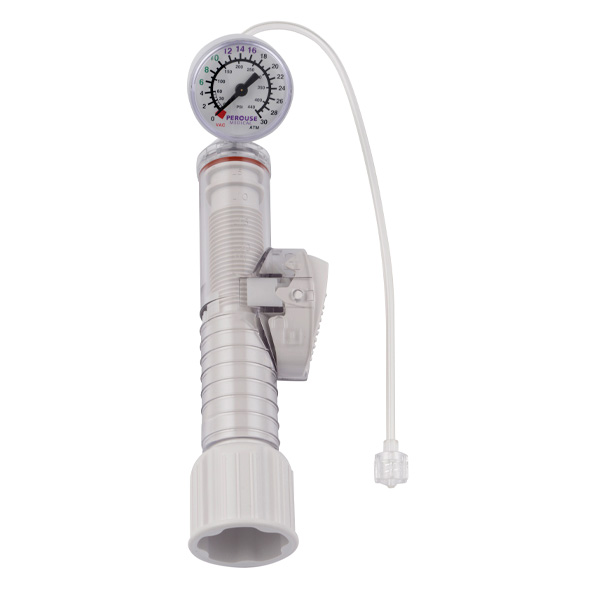

Flamingo
Flamingo is an inflation device for single use. It is consisting of a 20 cc syringe body with a plunger which may be engaged by a control button, a rotatory handle, a manometer and a high pressure connector with a fixed male Luer-lock. The manometer is graduated between vacuum and 30 atm with an equivalent scale in PSI and with a measure precision of 3%. There are two gripping choices by changing manometer’s position.
Some references are delivered with some accessories:
- 0218NA included a 3-way stopcock.
- 0218NK included a 3-way stopcock and a phosphorescent pressure gauge.
- 0218NP included a 3-way stopcock, a push-pull Y connector (7Fr), a twisting torque device and a guidewire introducer.
- 0218PM included a Myshell Lite with stopcock (7Fr), a twisting torque device and a guidewire introducer.
- 0218QN included a Myshell Lite with stopcock (9Fr), an Alligatork torque device and a guidewire introducer.
- 0218KT included a push-pull Y connector with stopcock (7Fr), a twisting torque device and a guidewire introducer.
- 0218KR included a 3-way stopcock, a push-pull Y connector with stopcock (7Fr), a twisting torque device and a guidewire introducer.

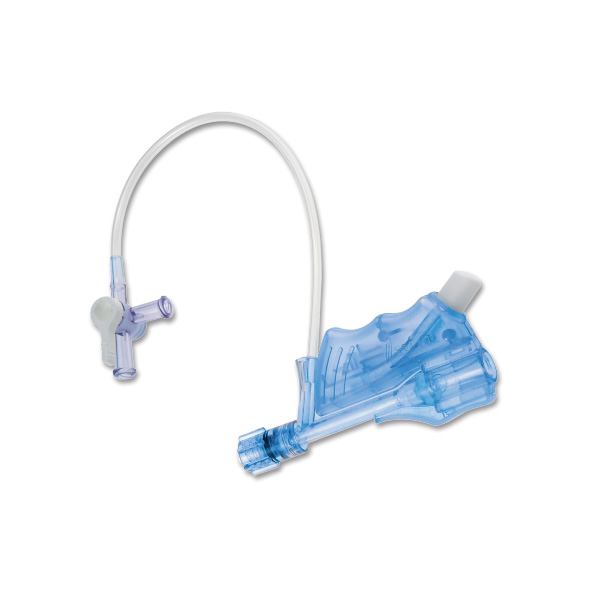

Myshell Lite
Myshell Lite is a Y connector equipped with a double silicone haemostatic valve, the opening of which is controlled by a command button.The axial line contains a haemostatic double valve at its proximal end and a rotating Luer-lock tip at its distal end. The lateral line is extended by a tubing, which depending on the version, incorporates a three-way stopcock or a female Luer-lock.
Includes:
- Y connector 7F with a 20 cm PVC connection line,
- 3-way stopcock.

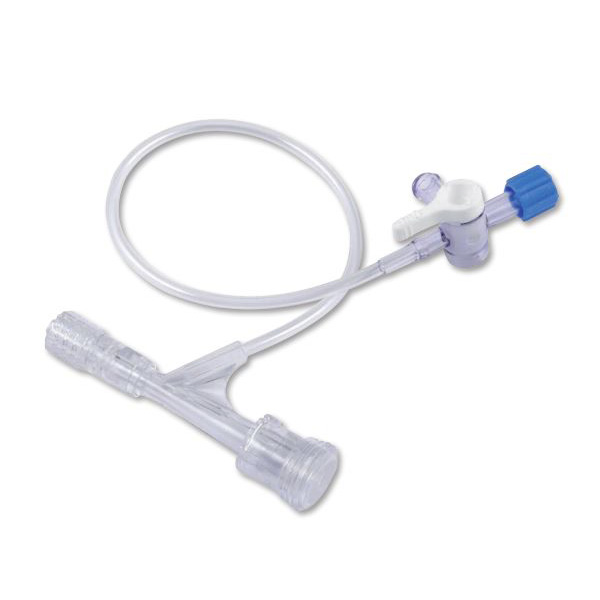

Squyd
SQUYD PUSH-PULL HAEMOSTASIS VALVE
- Push-pull system
- Silicone valve
- 7F inner lumen
Features & benefits:
Push-pull system
- Single-handed operation
- Minimized devices manipulation with sealed valve
- Limited blood loss and pressure drop
